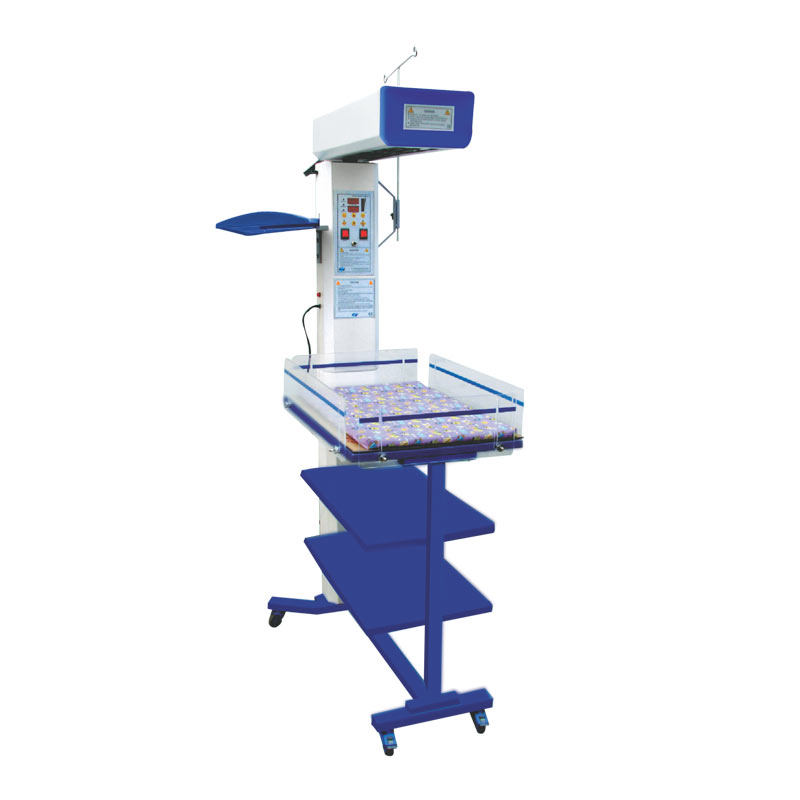

Infant Radiant Warmer (Model : TIANA – NW)

Advance micro processor controlled system with self check on the electronic circuitry Skin / Manual control. Digital Display of Baby Temperature / Set Temperature. Manual / Servo two function control modes provide the clinician more flexibility while optimizing the thermal environment. The Spacious baby bed incorporated easily drop down sides for maximum access to the baby. The Control Panel is also the heart for a completely integrated alarm system with both audible and visual Indicators in the event of

Probe Fail
Skin High
Skin Low
Power Fail

Return to Main Category

Category: Infant Radiant Warmer

Description

Description

Manual Mode
Facility of converting the warmer from servo mode to manual mode for non-stop working. The heat in the manual mode is locked at 50% to give more protection for the baby.

Heater Assembly
The Heater assembly located above the center of the support structure consists of radiant heater and reflector with inbuilt halogen examination lamp for assessment of Infant color. The heater can be swivelled to either direction.

Baby Bed
The attached spacious baby bed incorporates easy drop down glasses for maximum access to the patient.

Castors
The system is fitted with 2″ high quality castors having brakes in front 2 castors. Antistatic castors can be fitted as on option for further safety in lieu of the standard castors.

Technical Specification

Height	1920mm
Length	890mm
Width	860mm
Power Supply	220V/50Hz
Heater Power	650 Watts
Fuse	5 Amp

OPTIONAL
2 Trays below the baby bed for keeping consumables.
2 Drawers fitted below the baby bed.
