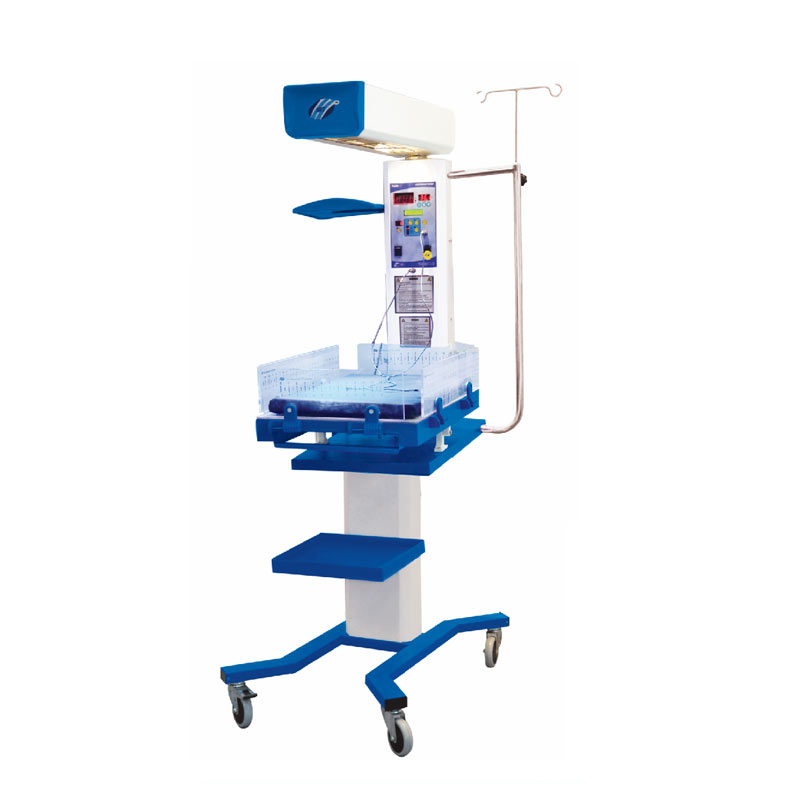

Infant Radiant Warmer (Model : TIANA – S)

Description

Control Panel
The Tiana^TM – S Infant Radiant Warmer  comes complete with automatic manual /baby (Servo)/Air modes. In addition, the Skin/Air temperature display is larger than other set temperature display. Skin temperature display can be converted form ^OC  to ^OF by the push of a button. A big LCD is provided for more information and visualizations of the heater power in manual and servo modes. A full complement of alarms provides safety and convenience, with both audible and visual indicators in the event of :
• High Temp./ Low Temp.  •  System Fail  • Probe Failure  •  Power Failure  • Timer  •  Heater fail / ON (Optional) only  visual alarm provided

Heater Assembly
The Parabolic heater assembly located above the centre of the support structure consists of an integral examination light and a 650 watts heating system (Silica or quartz /Ceramic Heater) for quick warming and even distribution of heat on the baby bed. The heater can be swiveled in either direction for taking X-ray and doing procedures.

Air Mode (Optional)
The system comes with air sensor. This is added security cover with exclusive feature of switching OFF the heater in case the AIR temperature goes above 39⁰C irrespective of what the skin temperature is at the time of event.

Manual Mode
 The system automatically starts heating from 40% in manual mode and the same can be changed through settings up to 100%. The system automatically converts from servo mode to manual mode in case of probe failure thus providing nonstop working of the unit.

Baby Bed
The spacious baby bed incorporates easy drop down/ fold down glasses for maximum access to the patient.
Optional: X-Ray facility is provided below the baby bed for taking X-ray of the baby without disturbing.

Additional Features
If needed the unit can be programmed by the user itself for any of the following features:
(a) Count Up / down Timer.
(b) Check baby Alarm.
(c)  Pre warming mode.

Castors
The system is fitted with 4″ high quality castors having brakes in front 2 castors. Antistatic castors can be fitted as on option for further safety in lieu of the standard castors.

Optional : The system comes with check baby alarm ( 1 – 120min.)

Technical Specification
