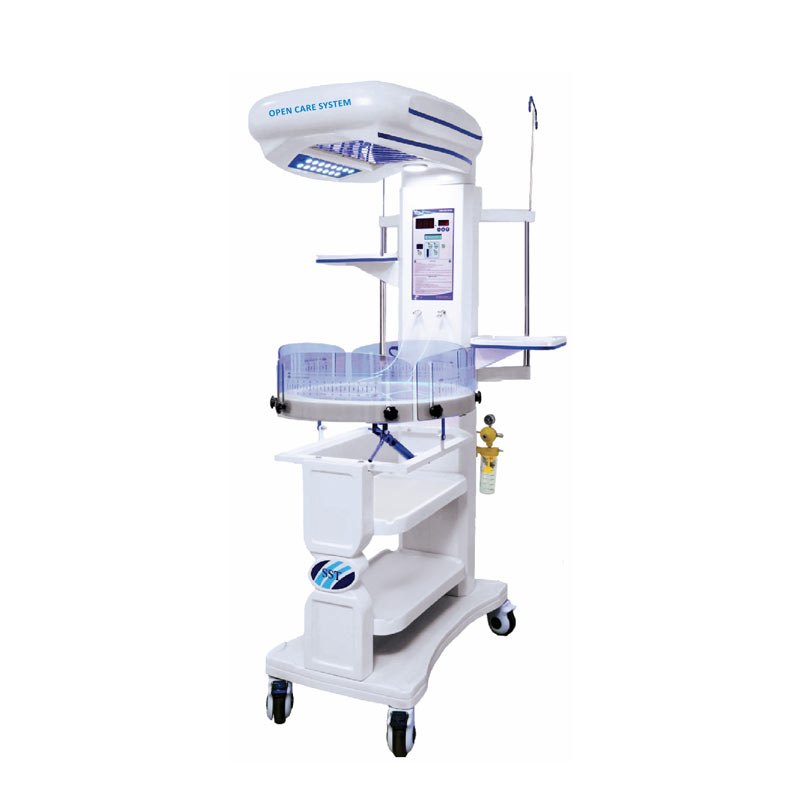

Open Care System (Model : TIANA- D)

Description

Control Panel
The TianaTM – D open care system comes with automatic manual and baby (Servo) modes.
In addition, the Skin/Air temperature display is larger than other set temperature display. Skin temperature display can be converted form OC  to OF by the push of a button. A big LCD is provided for more information and visualizations of the heater power in manual and servo modes. A full panel of alarms provides safety and convenience, with both audible and visual indicators in the event of:
•  High Temp./ Low Temp.    • Power Failure
•  System Fail                          •  Timer -On
• Probe Failure                       • Heater fail / ON (Optional) only visual alarm provided

Heater Assembly
The heater assembly located above the centre of the support structure consists of an integral examination light and a 650 watts heating system (Silica/ quartz /Ceramic Heater) for quick warming and even distribution of heat on the baby bed. The heater can be swivelled in either direction for taking X-ray and doing procedures. The Heater is also equipped with LED Phototherapy on both side to provide light intensity effective on the baby bed

Air Mode (Optional)
The system comes with air sensor. This is added security cover with exclusive feature of switching OFF the heater in case the AIR temperature goes above 390C irrespective of what the skin temperature is at the time of event

Technical Specification

Additional Features
If needed the unit can be programmed by the user itself for any of the following features:
(a)  Count Up / down Timer.
(b)  Check baby Alarm. (OPTIONAL).
(C)  Pre warming mode

Manual Mode
The system automatically starts heating from 40% in manual mode and the same can be changed through settings Up to 100%. The system automatically converts from servo mode to manual mode in case of probe failure thus providing nonstop working of the unit.

Baby Bed
The spacious baby bed incorporates easy drop down/ fold down glasses for maximum access to the patient. Optional: X-Ray facility is provided below the baby bed for taking X-ray of the baby without disturbing

Led Phototherapy (Optional)
Tiana D comes with choice of highly efficient and bright 12/15 choice of LED’s on each side of the heater. The strong lux of 24/30 LED’s cure jaundice in baby rapidly

Technical  Specification
Light Source :- High Bright Blue/Whit LED’s
Wavelength : – 450-470µm.
Irradiance    : – < 35 µw/cm/nm.
